Most people assume a cracked foundation means you need to walk away from the house. But that’s not always true. I’ve seen homes in Wellington with cracks wider than your thumb that are still perfectly livable - and others with hairline fractures that are about to collapse. The difference? It’s not about the crack itself. It’s about why it happened and how fast it’s getting worse.
Not All Cracks Are Created Equal
Foundations crack for reasons. Not because they’re broken, but because something changed. Soil shifts. Water seeps in. Trees grow. The ground freezes and thaws. A crack isn’t a death sentence - it’s a symptom.
There are three main types of cracks you’ll see:
- Vertical cracks - These run up and down, usually thin and straight. They’re often caused by normal settling. If they’re less than 1/8 inch wide and haven’t grown in six months, they’re usually harmless.

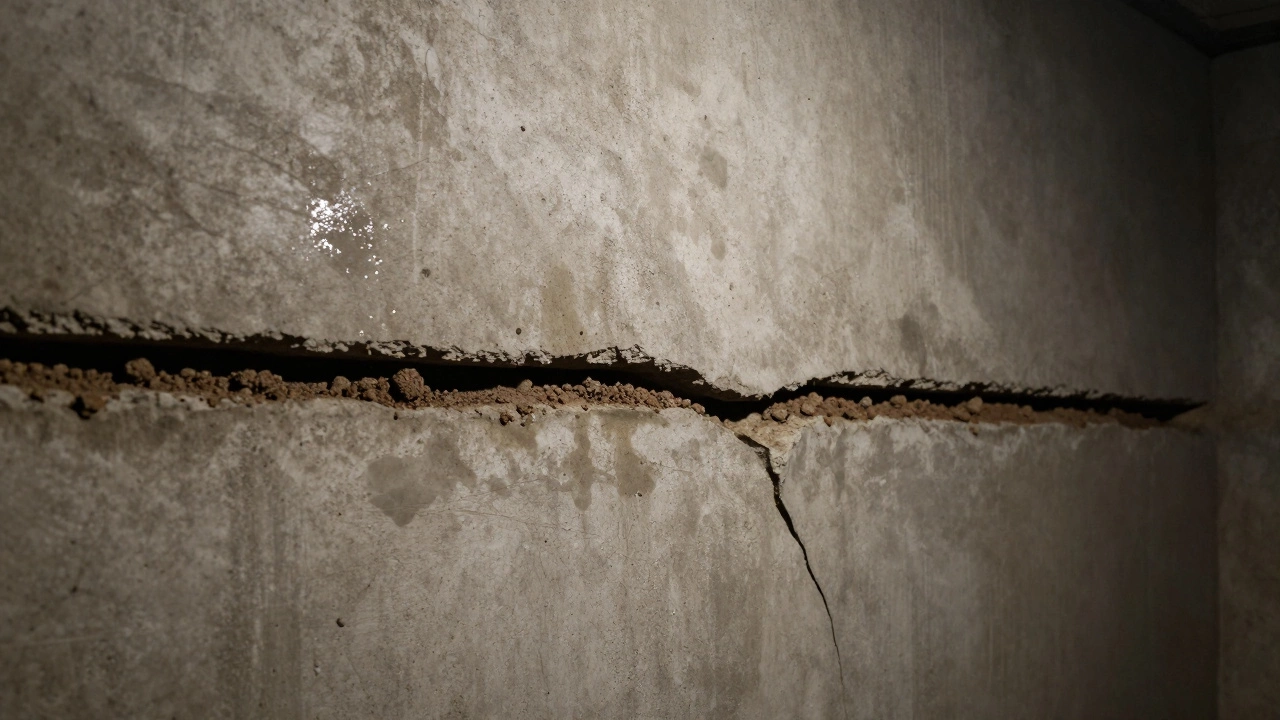

- Horizontal cracks - These are red flags. They show up on basement walls and mean the soil is pushing in. If the wall is bowing or you can see daylight through the crack, you’ve got pressure building. This isn’t cosmetic. This is structural.
- Stair-step cracks - These zigzag along brick or block walls. They happen when the foundation is shifting unevenly. If they match up between floors - like the crack on the first floor lines up with the one on the second - that’s a sign the whole structure is moving.
Measure the crack. Use a ruler. Write down the width. Take a photo. Come back in three months. If it hasn’t changed, you’re probably fine. If it’s growing - even by a millimeter - it’s time to act.
When It’s Safe to Stay
You can live in a house with a cracked foundation if:
- The crack is stable - no new movement in 6-12 months
- Doors and windows still open and close without sticking
- There’s no water leaking through the crack
- The floor isn’t sloping noticeably
- You’re not seeing new cracks elsewhere - like in walls, ceilings, or around chimneys
I worked on a 1920s bungalow in Lower Hutt last year. The foundation had a 3-centimeter crack along the back wall. The owner was ready to sell. But when we checked the moisture levels, the soil was dry. The crack was from a drought years ago that dried out the clay soil, then it settled. No water, no movement, no pressure. We sealed it, painted over it, and they’re still living there. No repairs needed.
That’s the key: stability. If the damage stopped, the house didn’t stop being safe. It just needs monitoring.
When You Should Leave
Here’s when you need to get out - and fast:
- Horizontal cracks wider than 5mm
- Cracks that let in rain or groundwater
- Doors that won’t latch, windows that jam shut
- Floors that slope more than 1 inch over 10 feet
- Cracks that are widening month after month
- Visible separation between walls and ceilings
One family in Porirua left their home after a 12mm horizontal crack appeared along the basement wall. The soil was clay-heavy and saturated from winter rains. The wall was bowing inward by 15mm. That’s not a repair job. That’s a collapse waiting to happen. They moved out. A structural engineer installed steel beams. It took six weeks. They came back. But they almost didn’t get the chance.
What Happens If You Ignore It?
Foundations don’t get better on their own. They get worse. Slowly. Then suddenly.
Water gets in. Mold grows. Wood rots. The structure loses its grip. A small crack becomes a gap. A gap becomes a shift. A shift becomes a lean. And then - one day - a wall gives way. Not dramatically. Not with a crash. Just... slowly. A doorframe tilts. A ceiling cracks. The floor dips. You don’t notice until you trip.
Insurance won’t cover foundation damage from gradual settling. Only sudden events - like earthquakes or floods. Most homeowners don’t realize that until it’s too late. A cracked foundation is a ticking clock. You can’t hear it. But it’s still counting down.
What to Do Next
Don’t panic. Don’t sell. Don’t ignore.
Step one: Get a professional inspection. Not a handyman. Not a contractor who does roofing. A structural engineer. They’ll use tools like laser levels, moisture meters, and crack gauges to measure movement over time. They’ll tell you if it’s active or dormant.
Step two: If it’s active, get a repair plan. Options include:
- Carbon fiber strips - For vertical and stair-step cracks. Cheap, non-invasive. Stops further movement.
- Steel beams - For bowing walls. Installed from inside the basement. Can cost $10,000-$25,000.
- Underpinning - Adding new concrete supports under the foundation. For severe settling. Costs $20,000-$70,000.
Step three: Monitor. Keep checking. Take photos. Measure. Track changes. Even after repairs, keep an eye on it. Foundations are like bones - they heal, but they never go back to being what they were.
What You Can Do Right Now
Before you call anyone:
- Mark the crack with a pencil line on both sides. Measure the distance between them. Write it down.
- Check for water. Look for damp patches, mold, or efflorescence (white chalky residue) on the wall.
- Test doors and windows. Try to open them. Do they stick? Do they slam shut?
- Look at the floors. Roll a marble. Does it roll toward one corner?
- Check the outside. Is the soil pulling away from the house? Is there standing water near the foundation?
Do this once a month. If nothing changes - you’re okay for now. If something does - don’t wait. Act.
Common Myths About Cracked Foundations
- Myth: All cracks mean the house is unsafe. Truth: Most are harmless. It’s the pattern and movement that matter.
- Myth: You can fix it with epoxy or caulk. Truth: That’s a band-aid. It hides the problem. Doesn’t fix the cause.
- Myth: Foundation repair always costs a fortune. Truth: Early fixes cost a few thousand. Late fixes cost tens of thousands.
- Myth: Newer homes don’t have foundation issues. Truth: Poor soil prep, bad drainage, or rushed construction can cause cracks in homes built last year.
Final Thought
A cracked foundation isn’t the end. It’s a warning. It’s your house telling you something’s off. You don’t have to run. But you can’t pretend it’s not there. The smart move isn’t to panic or to ignore. It’s to understand. Measure. Monitor. Act - but only when you know why.
Most houses with cracked foundations don’t need to be torn down. They just need someone to listen.
Can you live in a house with a cracked foundation?
Yes, you can - but only if the crack is stable, not growing, and not causing structural issues like sticking doors, sloping floors, or water leaks. If the crack is wider than 5mm, horizontal, or getting worse over time, it’s unsafe to stay without repairs.
How do I know if a foundation crack is serious?
Look for horizontal cracks, cracks wider than 5mm, cracks that let in water, or cracks that are widening over time. Also check if doors and windows stick, floors slope, or walls are bowing. If any of these are true, get a structural engineer to inspect it. A simple crack on its own isn’t dangerous - but movement is.
How much does foundation repair cost in New Zealand?
Costs vary widely. Carbon fiber reinforcement for minor cracks: $2,000-$5,000. Steel beams for bowing walls: $10,000-$25,000. Full underpinning for severe settling: $20,000-$70,000. Early fixes are cheaper. Waiting makes it worse - and more expensive.
Will insurance cover foundation damage?
Usually not. Most home insurance policies in New Zealand exclude damage from gradual settling, soil movement, or poor drainage. Only sudden events like earthquakes or flooding may be covered. That’s why regular inspections and early repairs are critical - you can’t rely on insurance to fix a slow leak that becomes a disaster.
Can foundation cracks be repaired without moving out?
Yes, in most cases. Carbon fiber strips and minor grouting can be done in a day with no disruption. Steel beam installations might take a week but usually don’t require you to leave. Underpinning or major excavation may require temporary relocation, but that’s rare and only for the most severe cases. Most repairs are done while you live there.
