Is Foundation Settling Normal? Signs, Causes & When to Worry

You wake up one morning and notice a hairline crack in your living room wall. It wasn’t there last week. Your mind immediately jumps to the worst-case scenario: is your house sinking? Is the foundation failing? Before you panic or call an expensive contractor, take a breath. The short answer is yes, foundation settling is normal for almost every building. However, "normal" has limits. Understanding where that line is drawn between harmless seasonal movement and dangerous structural failure can save you thousands of dollars and a lot of stress.

Every structure exerts weight on the ground beneath it. The earth reacts by compressing slightly under that load. This process, known as consolidation, happens right after construction and continues slowly over decades. In Wellington, New Zealand, we face unique challenges due to our volcanic soils and seismic activity, making this topic even more critical for homeowners here. Let’s break down what is actually happening under your floorboards and how to tell if you need professional help.

The Science Behind Why Buildings Settle

To understand if your home’s movement is normal, you first need to know why it moves at all. When a builder pours concrete for a foundation slab or digs trenches for strip footings, they are transferring the massive weight of your home-from the roof beams to the interior walls-down into the soil. Soil is not a solid rock; it is a mixture of particles, air, and water. Under pressure, those particles rearrange themselves to pack tighter together.

This initial compression is called primary consolidation. For most new builds, the majority of this settling occurs within the first two years after construction. You might notice slight squeaks in floors or tiny gaps appearing around window frames during this period. This is expected behavior. The ground is simply finding its equilibrium under the new load.

However, settling doesn't stop completely. Over time, factors like changes in moisture content, temperature fluctuations, and even tree root growth can cause secondary movement. This is known as differential settlement, which is where parts of the foundation sink at different rates than others. Unlike uniform settling, differential settlement is the primary cause of structural damage. If one corner of your house sinks while the other stays put, the entire frame twists, leading to cracks and misalignments.

Normal vs. Abnormal Settlement: Reading the Signs

So, how do you distinguish between the harmless "growing pains" of a house and a serious problem? You need to become a detective in your own home. Look for specific indicators that suggest the movement is excessive or ongoing.

Signs of Normal Settlement:

• Hairline Cracks: Thin cracks (less than 1/8 inch or 3mm wide) in drywall or plaster, especially near corners of doors and windows. These are often cosmetic and result from the framing shifting slightly as the wood dries out and settles.
• Minor Floor Slope: A very slight slope in older homes can be normal, provided it isn't increasing over time. Most building codes allow for a certain degree of deflection in floor joists.
• Sticking Doors After Humidity Changes: Wood expands and contracts with humidity. If a door sticks only in summer but works fine in winter, it’s likely a climate issue, not a foundation issue.

Red Flags for Abnormal Settlement:

• Wide or Growing Cracks: Cracks wider than 1/4 inch (6mm), or those that are vertical and jagged rather than straight. Horizontal cracks in foundation walls are particularly dangerous as they indicate pressure from outside soil pushing in.
• Diagonal Cracks at Corners: Cracks that start at the corners of windows or doors and extend outward at a 45-degree angle suggest that the opening is distorting because the foundation below it is moving unevenly.
• Door and Window Misalignment: If doors no longer latch properly, stick consistently regardless of the season, or have visible gaps at the top or sides that weren’t there before, the frame is being twisted.
• Gaps Between Walls and Ceilings/Floors: Visible separation where the wall meets the ceiling or floor indicates significant structural shifting.
• Uneven Floors: Use a marble test. Roll a marble across your floor. If it rolls significantly in one direction or stops abruptly due to a dip, you may have a sloping floor caused by differential settlement.

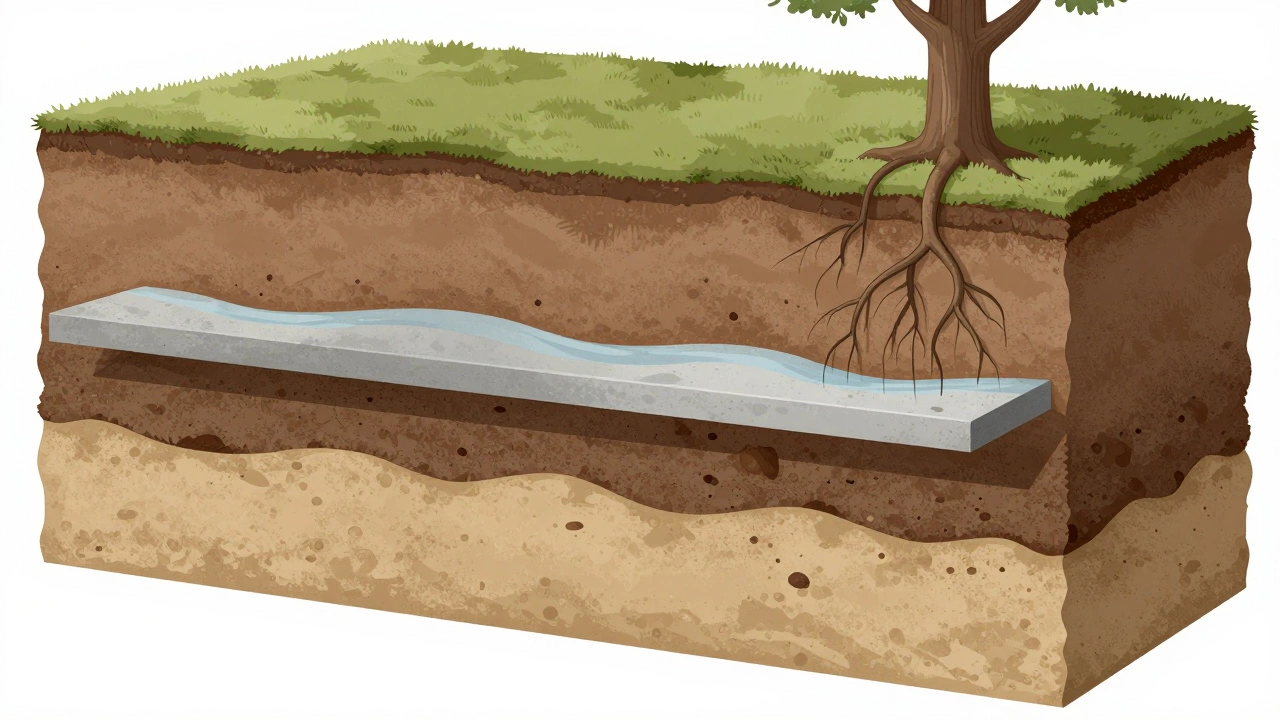

The Role of Soil Type in Foundation Stability

In New Zealand, particularly in regions like Wellington, Auckland, and Christchurch, the type of soil beneath your home plays a massive role in foundation stability. Not all dirt behaves the same way. Understanding your soil profile is key to diagnosing settlement issues.

Expansive clay is the most problematic soil type for foundations. It acts like a sponge. During heavy rains, it absorbs water and expands, pushing your foundation upward. During droughts, it loses moisture and shrinks, pulling the foundation down. This cycle of heaving and settling puts immense stress on the concrete and framing. In contrast, sandy soils provide consistent support because they drain well and do not change volume significantly with moisture changes.

If you live in an area with high water tables or loose fill soil (soil that was dumped there rather than naturally occurring), the risk of differential settlement increases. Natural ground compacts uniformly over millennia. Fill soil does not. It continues to settle unpredictably, often leading to voids underneath the foundation slab.

Common Causes of Excessive Foundation Movement

While soil type sets the stage, several triggers can accelerate settlement beyond normal levels. Identifying these causes helps you prevent further damage.

Water Issues: Water is the number one enemy of foundations. Poor drainage around your home allows water to pool against the foundation walls. This saturates the soil, reducing its bearing capacity and causing erosion. Leaking pipes under the slab can wash away supporting soil, creating voids. Ensure your gutters direct water at least 1.5 meters away from the foundation and that your yard slopes away from the house.

Vegetation: Large trees and shrubs planted too close to your home can wreak havoc. Tree roots seek out moisture. They can absorb water from the soil around your foundation, causing it to shrink and settle. Conversely, dead trees removed from the site can lead to soil expansion as the ground rehydrates, potentially heaving the foundation. Maintain a safe distance-generally equal to the height of the mature tree-between large vegetation and your structure.

Construction Errors: Sometimes, the problem starts before you even move in. Improperly compacted backfill, inadequate footing depth below the frost line (less relevant in Wellington but important in colder climates), or weak concrete mixes can lead to premature settling. If you bought a new build and see major cracks within the first year, it may be a warranty issue related to construction quality.

Seismic Activity: New Zealand sits on the Pacific Ring of Fire. Earthquakes can liquefy soil, turning solid ground into a fluid-like state that cannot support structures. Even minor tremors can shift foundations slightly. While modern building codes (NZS 3604) require bracing against lateral forces, older homes may lack sufficient reinforcement, making them vulnerable to cumulative damage from repeated shaking.

When to Call a Professional

Not every crack requires a jackhammer. However, ignoring warning signs can turn a minor repair into a major renovation. You should consult a licensed structural engineer or a reputable foundation repair specialist if you observe any of the following:

• Cracks in the foundation itself (concrete or brick) that are wider than 5mm.
• Doors or windows that are increasingly difficult to open or close.
• Floors that feel bouncy or visibly sag.
• Chimneys or porches separating from the main structure.
• Multiple cracks appearing rapidly over a short period.

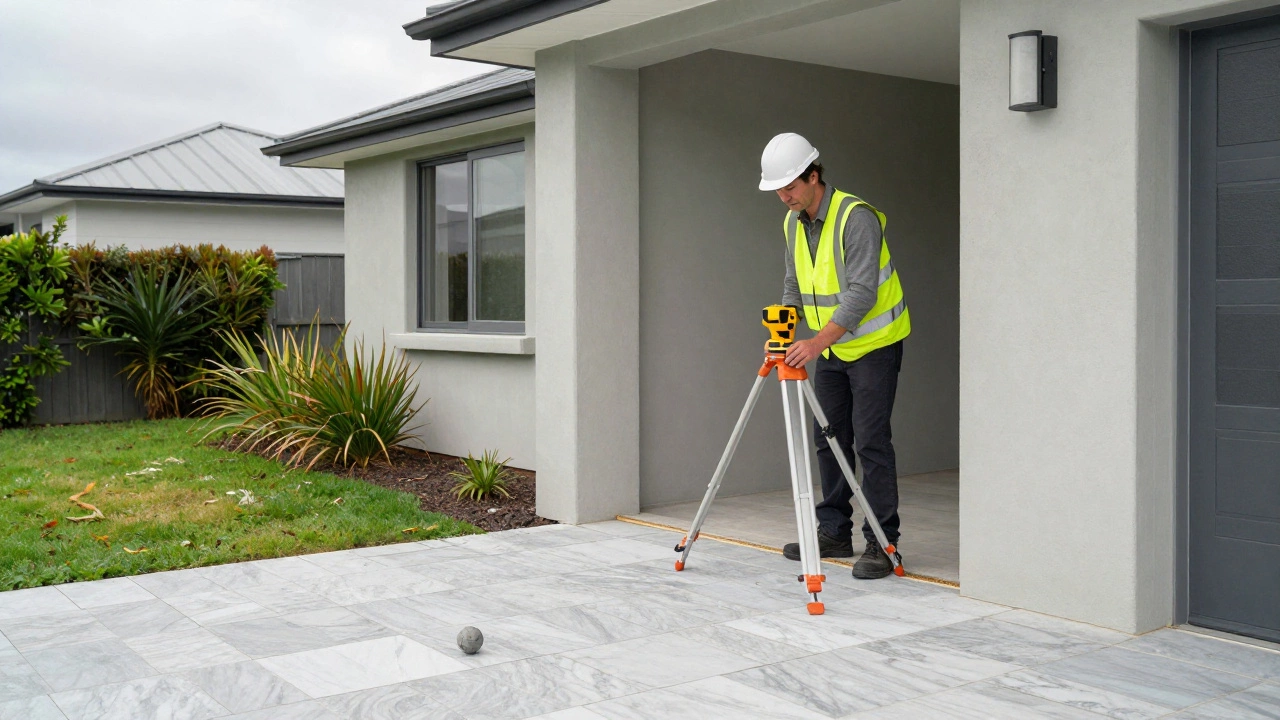

A professional will perform a thorough inspection, which may include monitoring crack width over time using gauges, checking levelness with laser tools, and possibly conducting a soil analysis. They can determine if the movement is active (still happening) or historic (stopped). Active movement requires immediate intervention to stabilize the structure.

Prevention and Maintenance Tips

Preventing foundation problems is far cheaper than fixing them. Here are practical steps to protect your home’s base:

1. Maintain Consistent Moisture: Keep the soil around your foundation evenly moist. Avoid extreme drying out during summer by watering the perimeter if necessary, especially if you have expansive clay soil.
2. Improve Drainage: Clean gutters regularly. Install French drains if water pooling is a recurring issue. Ensure downspouts extend well away from the foundation.
3. Inspect Plumbing: Regularly check for leaks under sinks, around toilets, and in basements. Hidden leaks can erode soil unnoticed.
4. Manage Vegetation: Remove large trees close to the foundation. Plant shallow-rooted shrubs instead.
5. Monitor Existing Cracks: Place tape across small cracks and mark the date. Check periodically to see if they widen. This data is invaluable for engineers.

Remember, your foundation is the backbone of your home. Treat it with care, monitor it closely, and don’t hesitate to seek expert advice when things look off. Early detection is your best defense against costly repairs.
